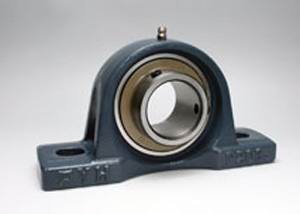

FYH Bearings UCP204-12 3/4" Pillow Block Mounted Bearing
	Part Number: kit8801 Our Low Price: $15.83 Shipping Weight: 1.5 pounds
	Quantity:

Balls Bearings

FYH Bearings Pillow Block Bearing Cylindrical bore (with set screws) 3/4" (.750 inch) Inner Diameter Bearing

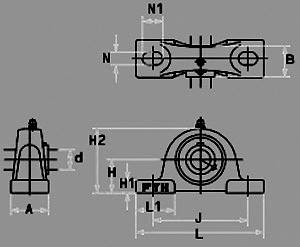

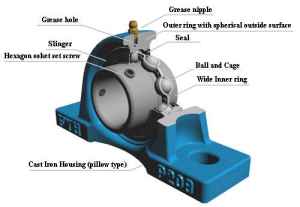

This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately. d = 3/4" H = 1 5/16" L = 5" A = 1 1/2" J = 3 3/4" N = 1/2" N1 = 23/32" H1 = 1/2" H2 = 2 17/32" L1 = 1 1/2" B = 1.220" S = 1/2" Bolt Size = 3/8" Basic Load kN (Cr)= 12.8 Basic Load kN (Cor)= 6.65 Bolt Size = 3/8" Bearing No = UC204-12
